Rotor mills are used for high-speed size reduction of soft to medium-hard as well as temperature-sensitive or fibrous materials.

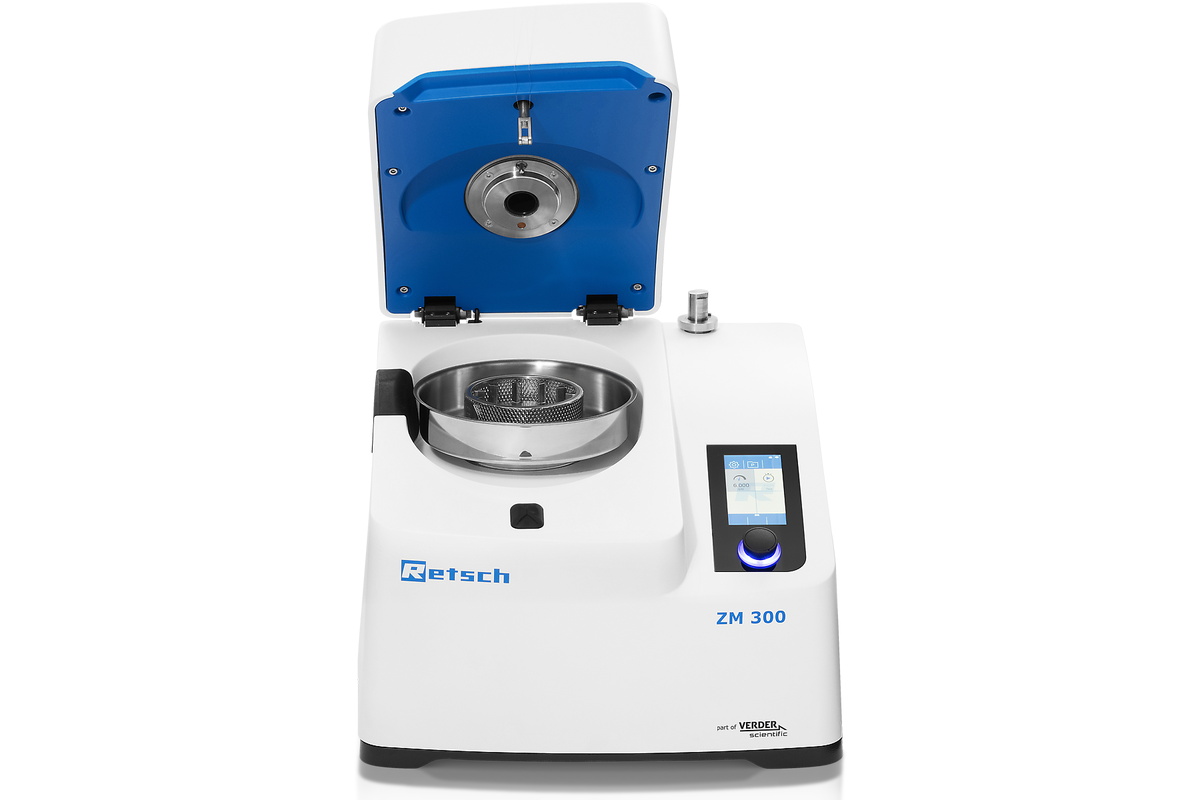

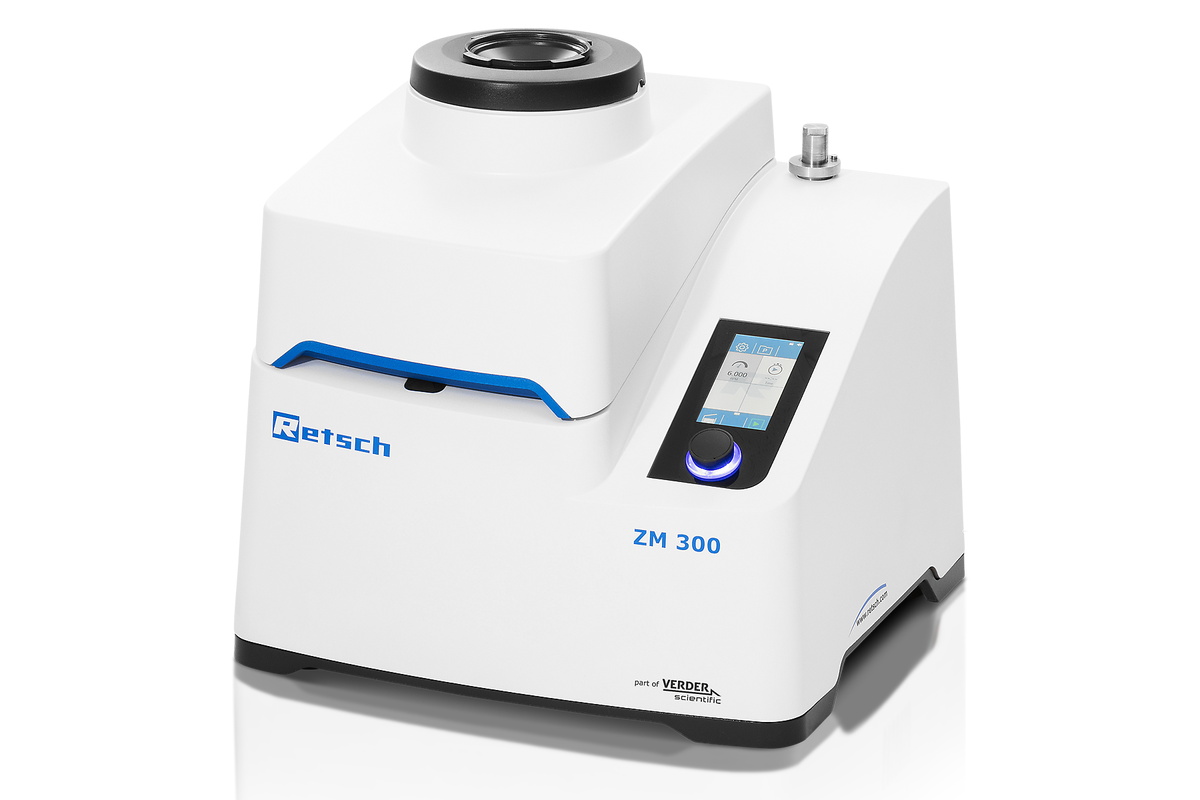

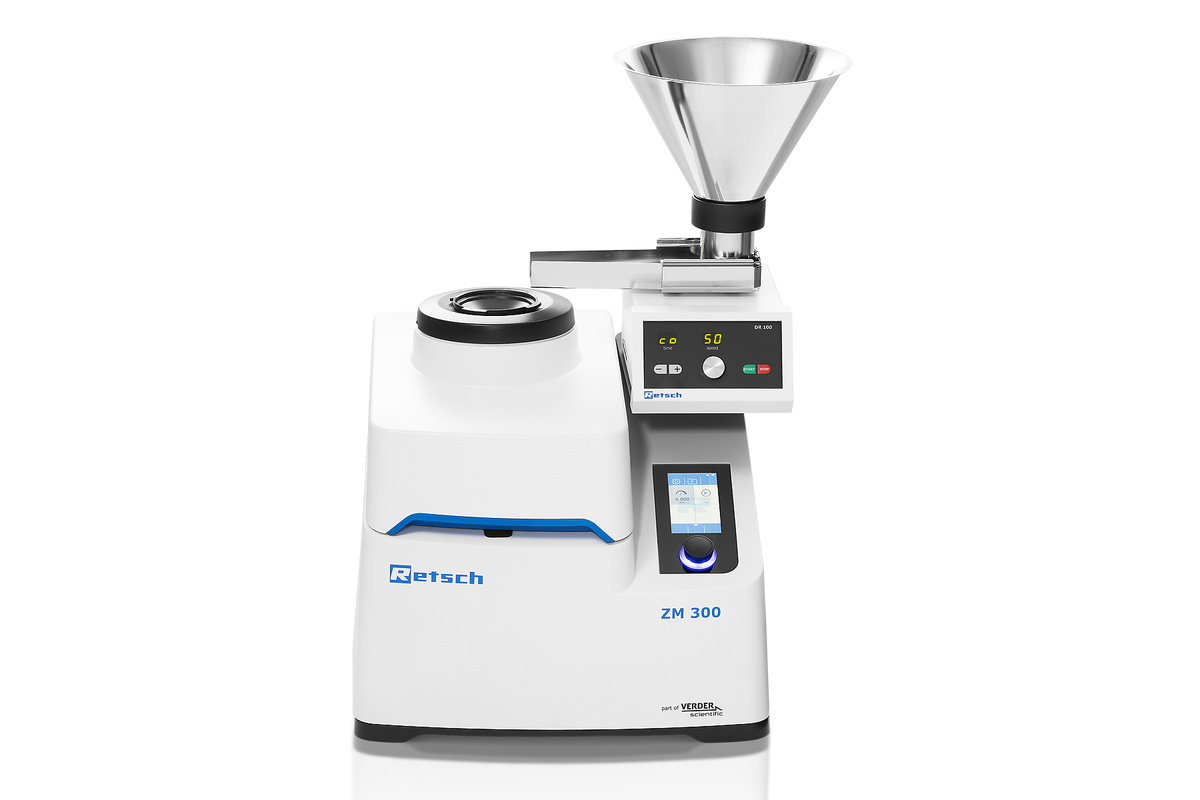

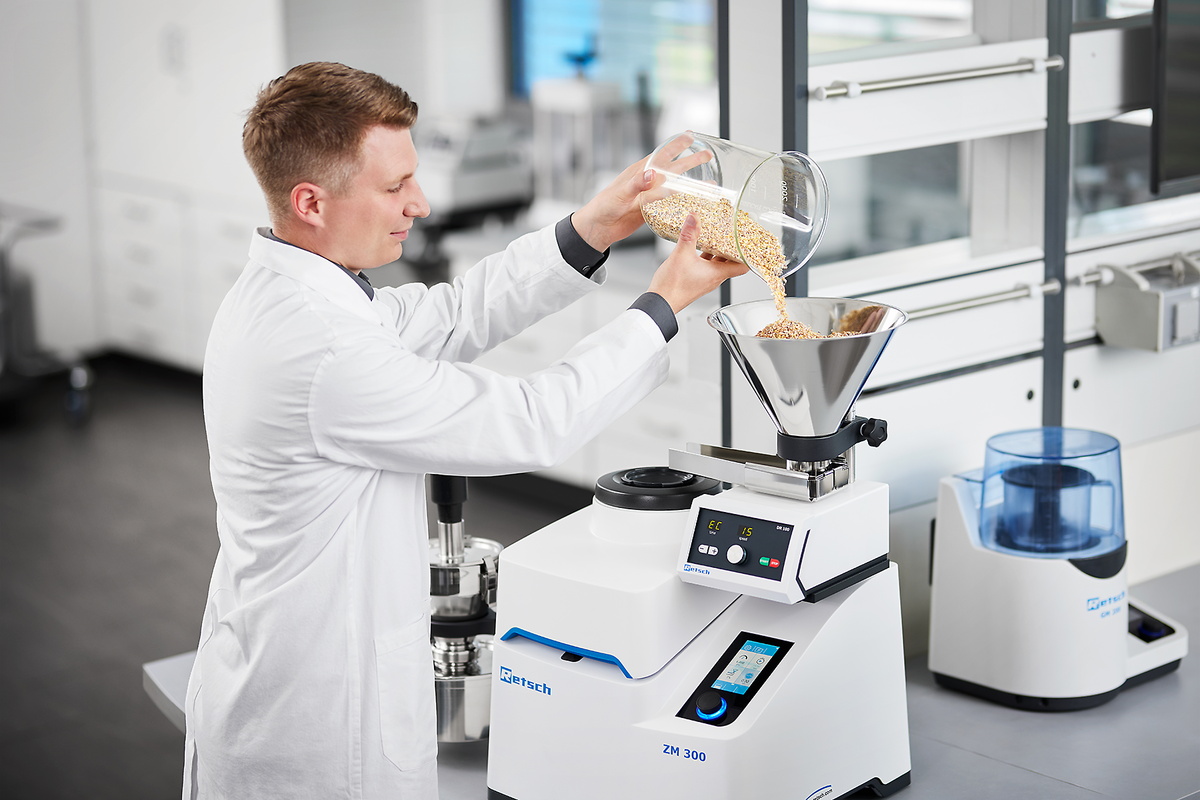

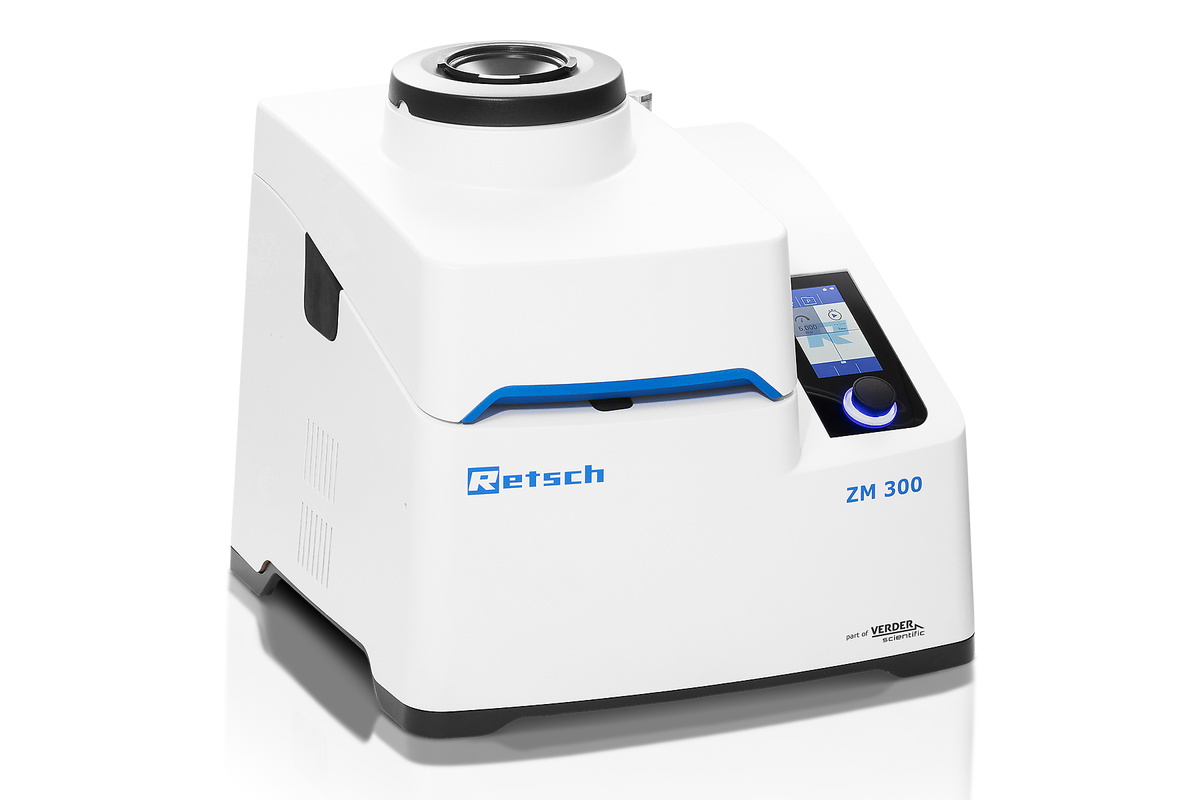

The powerful Ultra Centrifugal Mill ZM 300 provides maximum grinding performance combined with ease of use. The variable speed from 6,000 to 23,000 rpm allows for gentle, neutral-to-analysis sample preparation in a very short time.
Thanks to an integrated temperature monitoring system, reproducibility is guaranteed even for long grinding processes or pulverization of large sample volumes.
The wide selection of rotors, ring sieves and cassettes makes the ZM 300 a true allrounder which meets the requirements of a great variety of size reduction tasks.
"Very easy to operate the device. Relatively easy to clean after grinding (avoiding cross-contamination)."
Jaap Winkelhorst
BASF
"Grinding is very quick. We use the cyclone connection that makes the grinding process easy with large patches."
Eija Fogelholm
Finnish Customs Laboratory
"This equipment is a must have for ingredients science and application laboratories. Easy to use, low maintenance and safe to operate. It provides reproducible results. "
Petros Gebreselassie
Ashland Inc.
"The Retsch Ultra centrifugal mill is the one “grinder” that gave us the particle size and hence the best analytical result (e.g. oil content) in a variety of oilseed sample types. Over 30 years in the laboratory, allows me to call the Retsch mills/ grinders as the “gold standard” when it comes to sample preparation."
Douglas DeClercq
DRD
"This is best grinder in our Lab. We also have other brands, but the Retsch Mill is a top ranking. All stainless-steel parts are very easier to clean. "
Tai Ha
Nebraska Department of Agriculture Laboratory
"This grinder performs wonderfully. We have had ours close to 5 years and have not had an issue. We grind anywhere from 300-500 samples per week.
Mary Ann Barrett
Jennie-O Turkey Store
"Highly effective, easy to use, high quality product."
Ashley Brown
ISK Biosciences Corporation
"High quality instrument, fast processing time, easy to use and clean! "
Alec Keyzer
Bureau Veritas
The speed range from 6000 to 23000 rpm allows for optimum adaptation of the grinding process to the sample requirements by keeping the grinding time as short as possible and the temperature increase as moderate as possible. Too much heat may have a negative effect on the grinding results, for example, if moisture or volatile components escape.
The ZM 300 is equipped with an integrated temperature sensor which measures the temperature of the cassette lid near the ring sieve. The measured temperature is constantly shown in the mill’s display, allowing the user to optimize the grinding process and improve reproducibility.

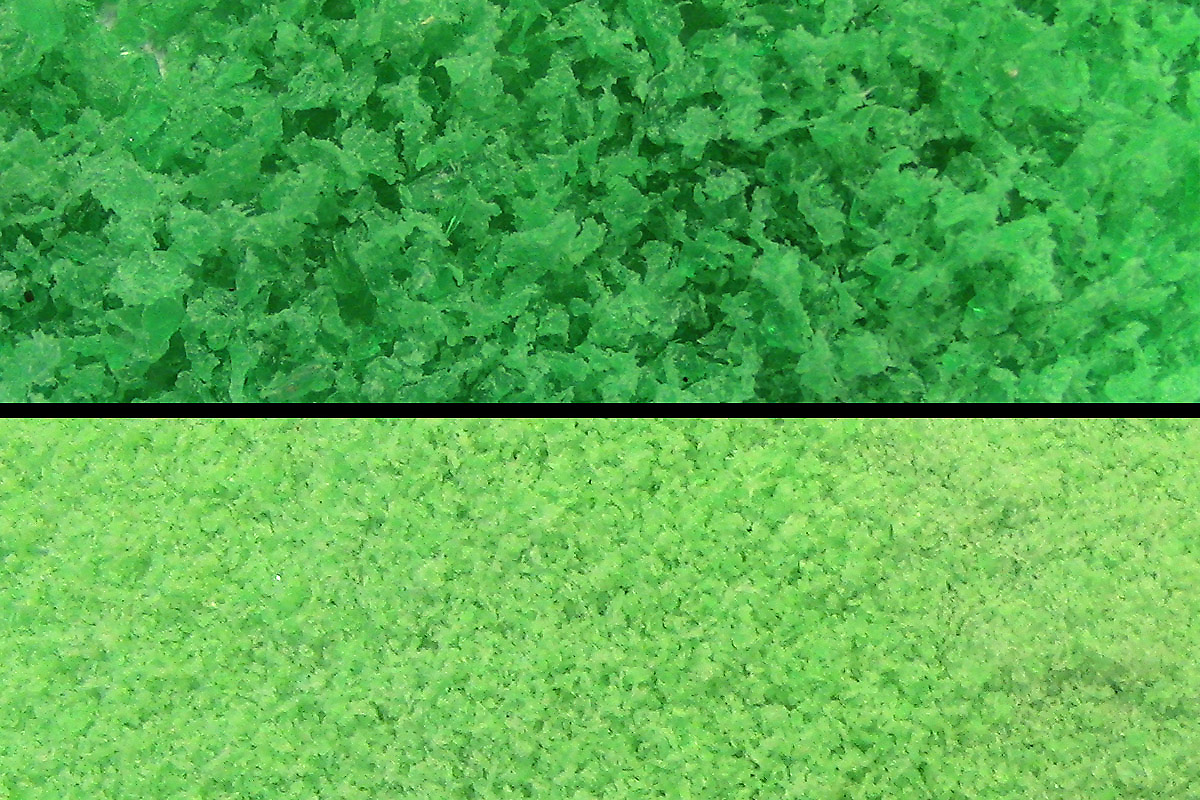

Grind sizes of plastic materials (POM or PP) after grinding with different sieves and speeds. The speed of 23,000 rpm results in a higher fineness for all sieves compared to grinding at 18,000 rpm. For example, a 19 % reduction in fineness can be achieved when POM is ground with a 0.12 mm distance sieve at 23,000 rpm.

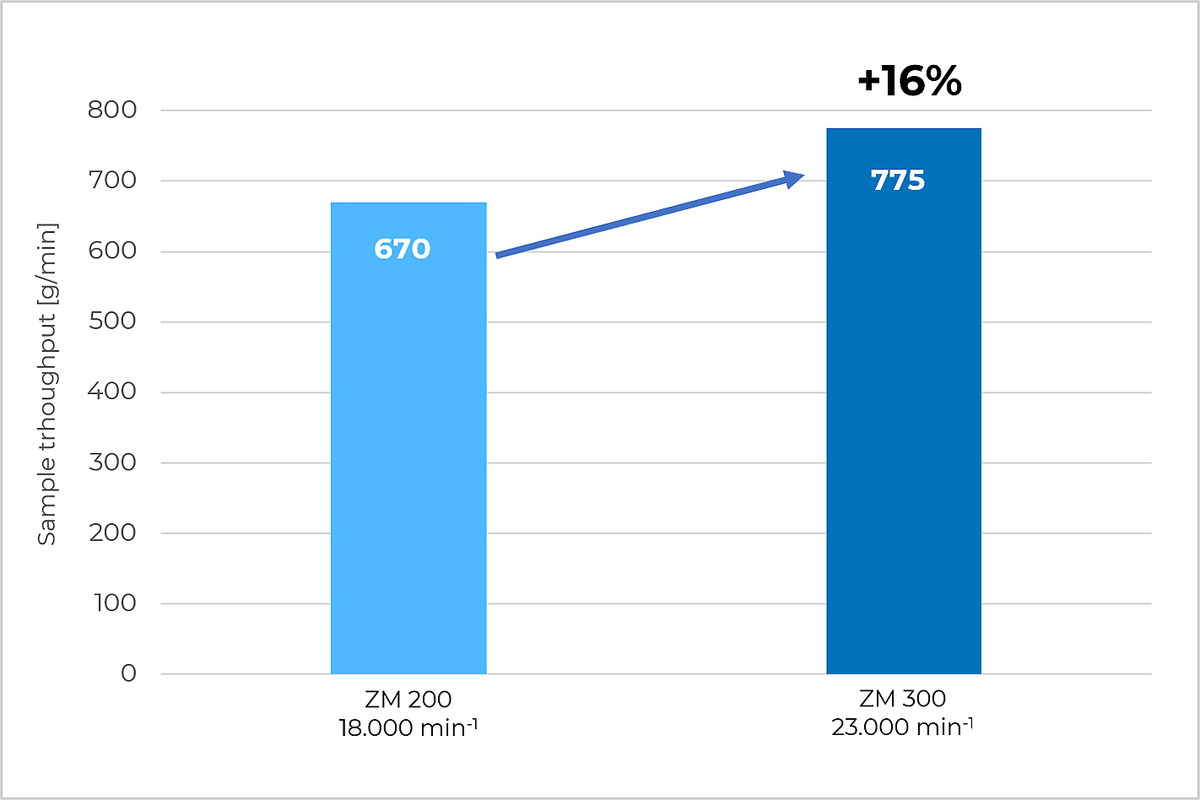

The maximum sample throughput, e.g. when crushing chicken feed with a 0.5 mm ring sieve, could be increased by 16% when crushing at maximum speed of 23,000 min-1 instead of 18,000 min-1.
Cryogenic or cold grinding is the ideal solution for pulverizing samples that cannot be reduced to the required fineness at room temperature. This procedure involves the use of grinding aids such as liquid nitrogen (-196 °C, embrittlement of the sample outside the mill) or dry ice (-78 °C, sample/dry ice mixture) to embrittle the sample material by cooling, and thus improve the breaking behavior.
In addition, highly volatile components are better preserved in the sample by cooling. Cryogenic grinding is easy to perform with the ZM 300 and is recommended especially for plastics or very temperature-sensitive samples. The video shows the process with the predecessor model ZM 200, which is identical in the ZM 300.
This video shows dryice grinding of plastic granules with the ZM 200 which also applies to the ZM 300.

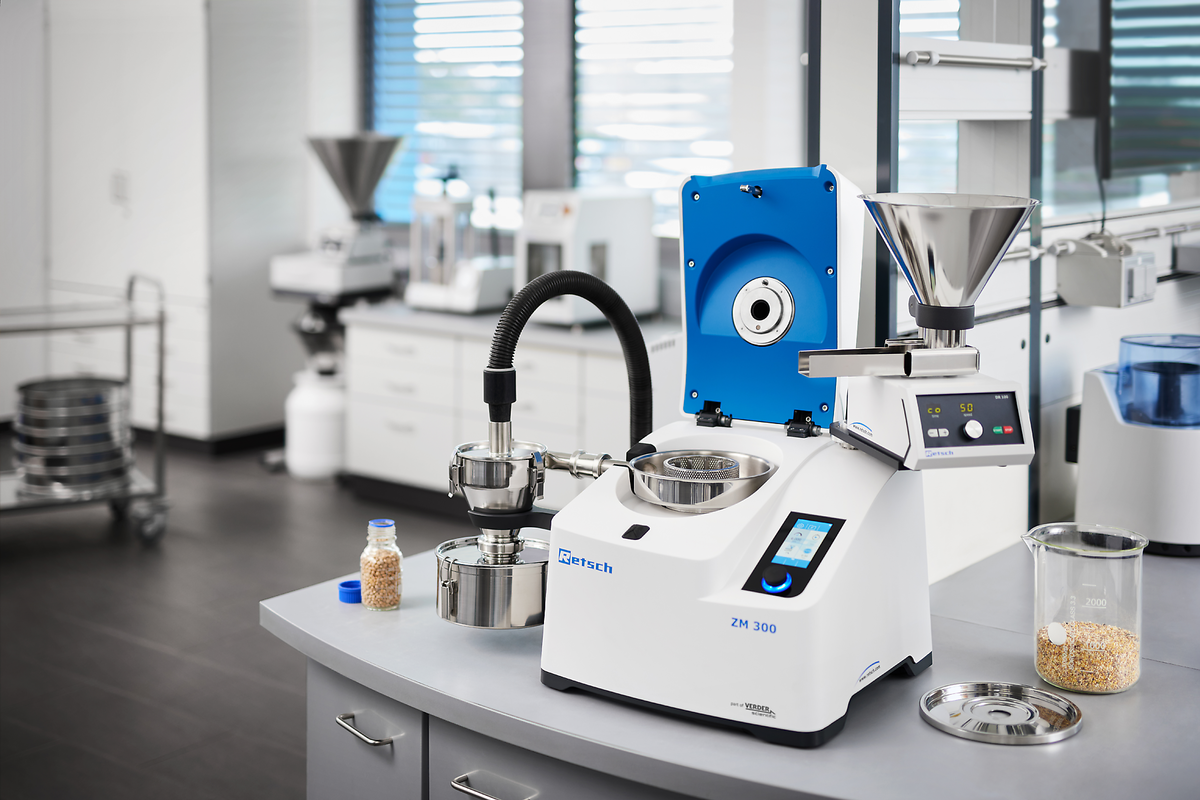

In combination with the cyclone suction unit, the Ultra Centrifugal Mill ZM 300 mill is even suitable for grinding light and heat-sensitive materials.
The wide range of accessories makes the ZM 300 extremely versatile. The desired final fineness can be determined by selecting the ring sieve. Rule of thumb: After grinding, approximately 80% of the sample material is about half the size of the sieve aperture. You can choose between sieves with apertures ranging from 0.08 to 10 mm.

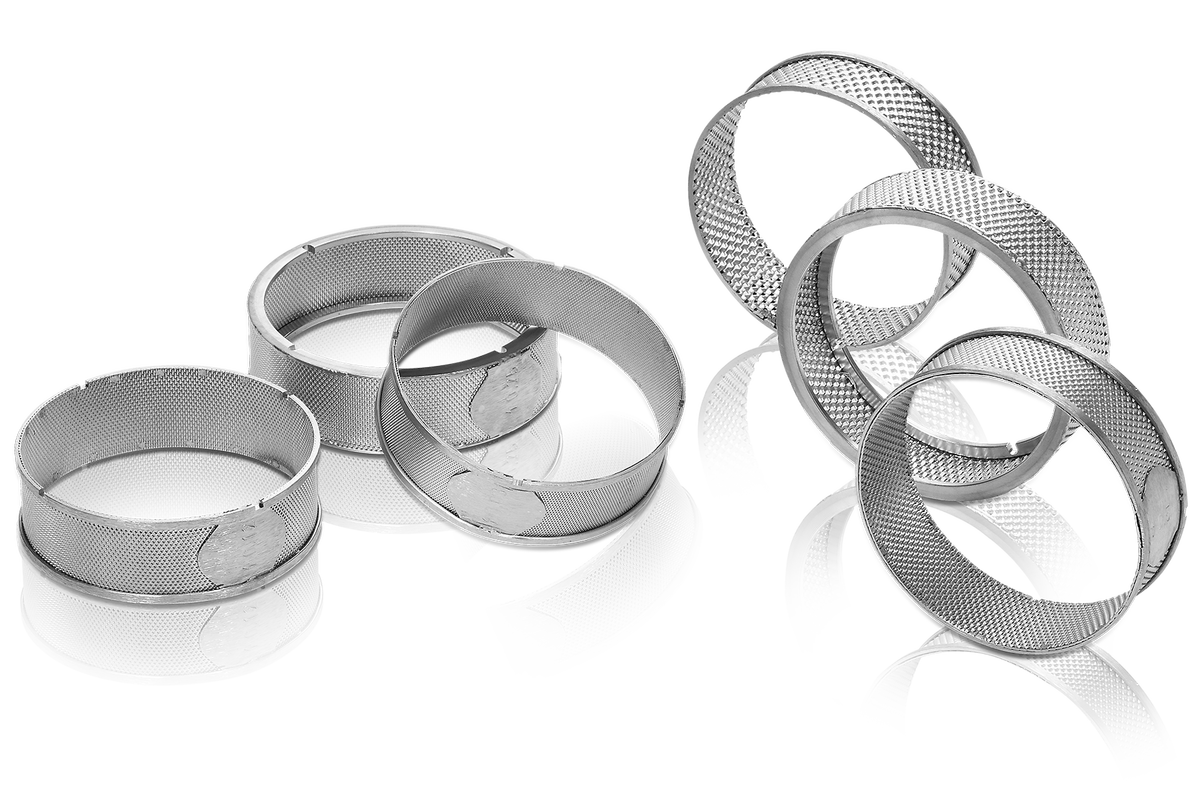

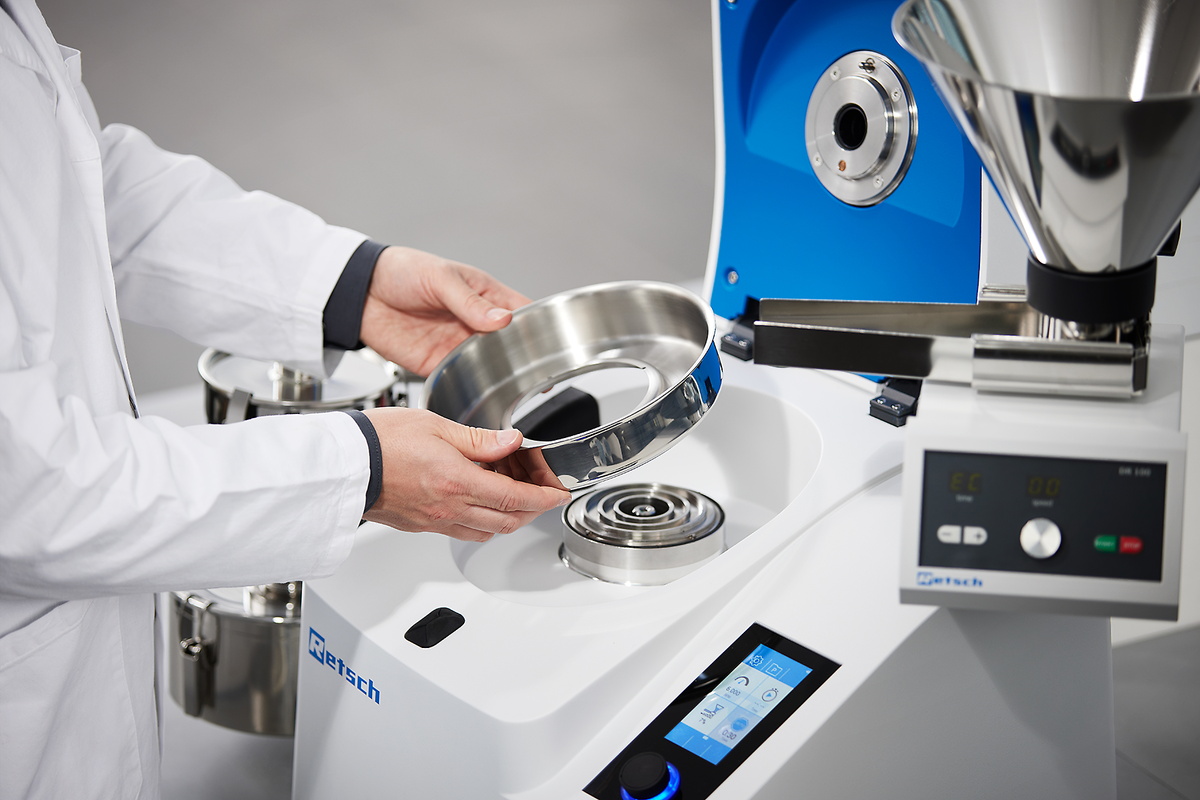

For the ZM 300 ring sieves with reinforced rim are used which are equipped with four grooves for secure locking. Distance sieves, also secured and fixed by four grooves, have a gap between the sieve mesh and the rotor, which reduces shearing effects and thereby heat generation.

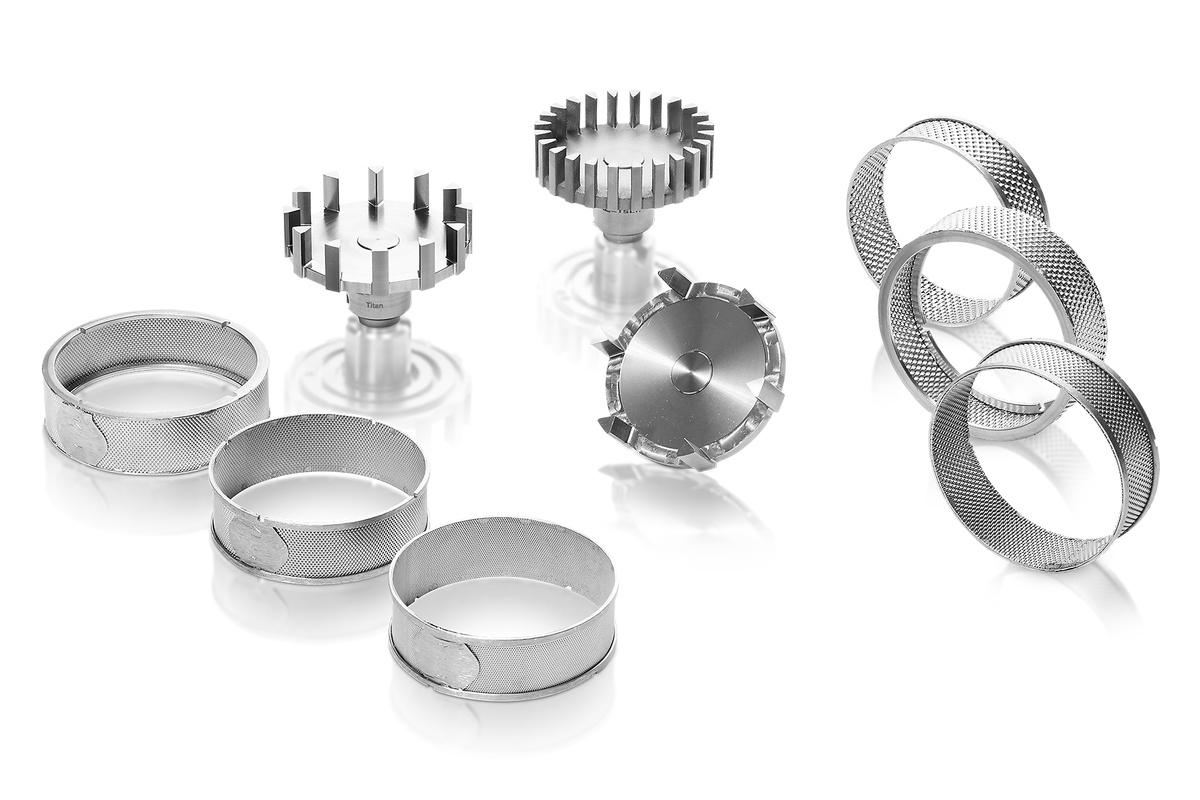

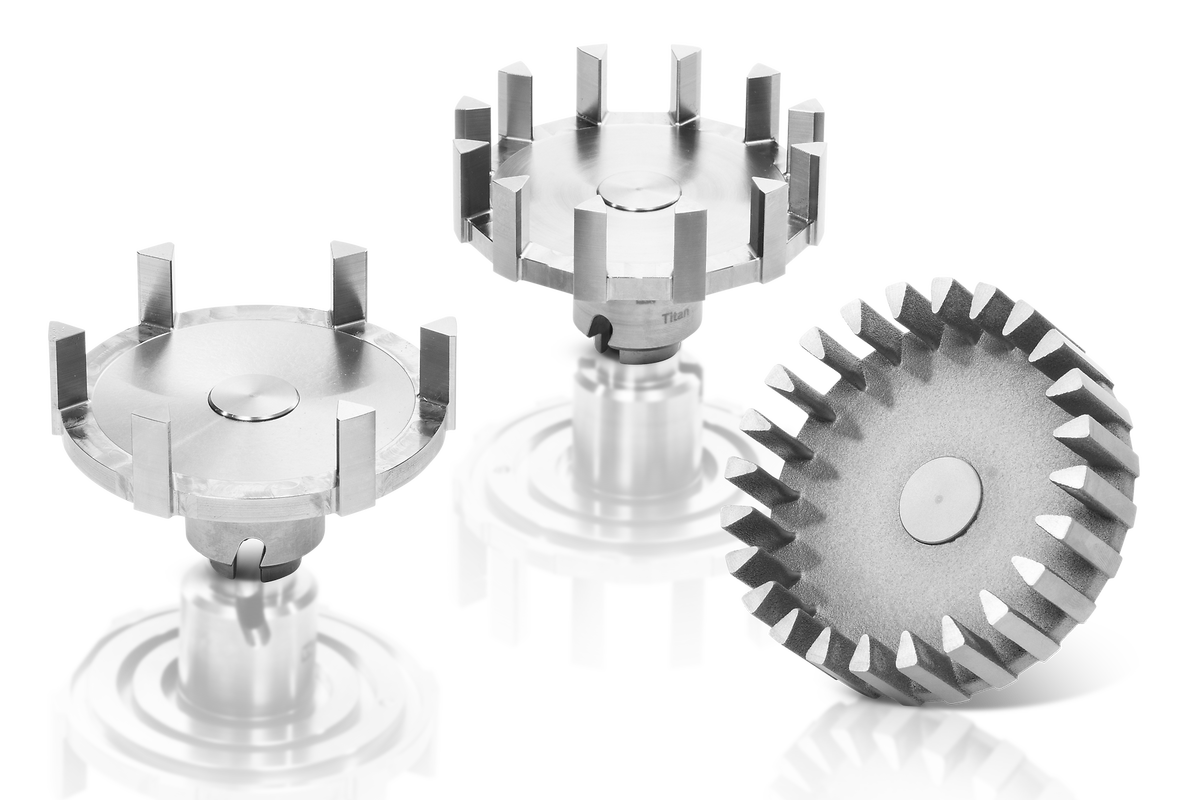

Rotors are available with either 6, 12 or 24 teeth. The standard rotor with 12 teeth is suitable for almost any material and requirement. For fibrous samples, such as straw, the rotor with 6 teeth is typically used, while for fine samples the rotor with 24 teeth is best suited.
For neutral-to-analysis work, or for pulverizing abrasive samples, grinding tools in various materials are available: titanium (titanium-niobium coating), steel 1.4404, tungsten carbide coating.

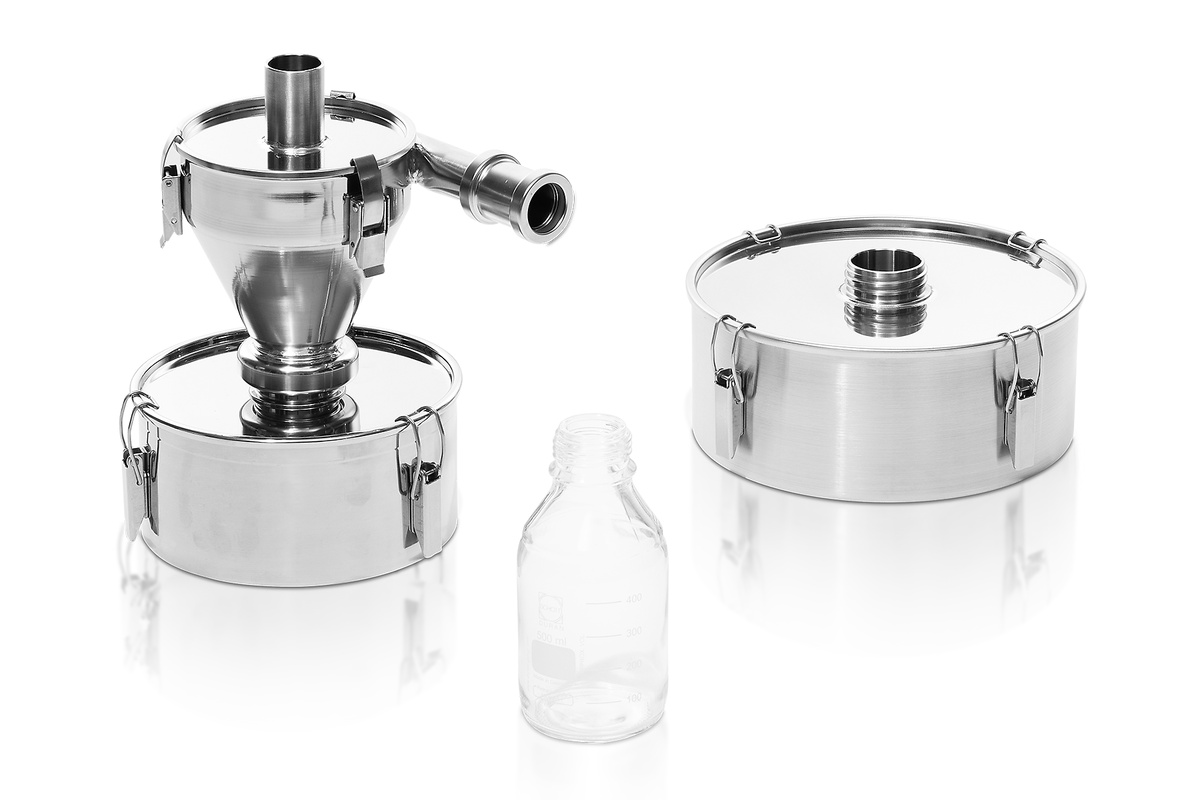

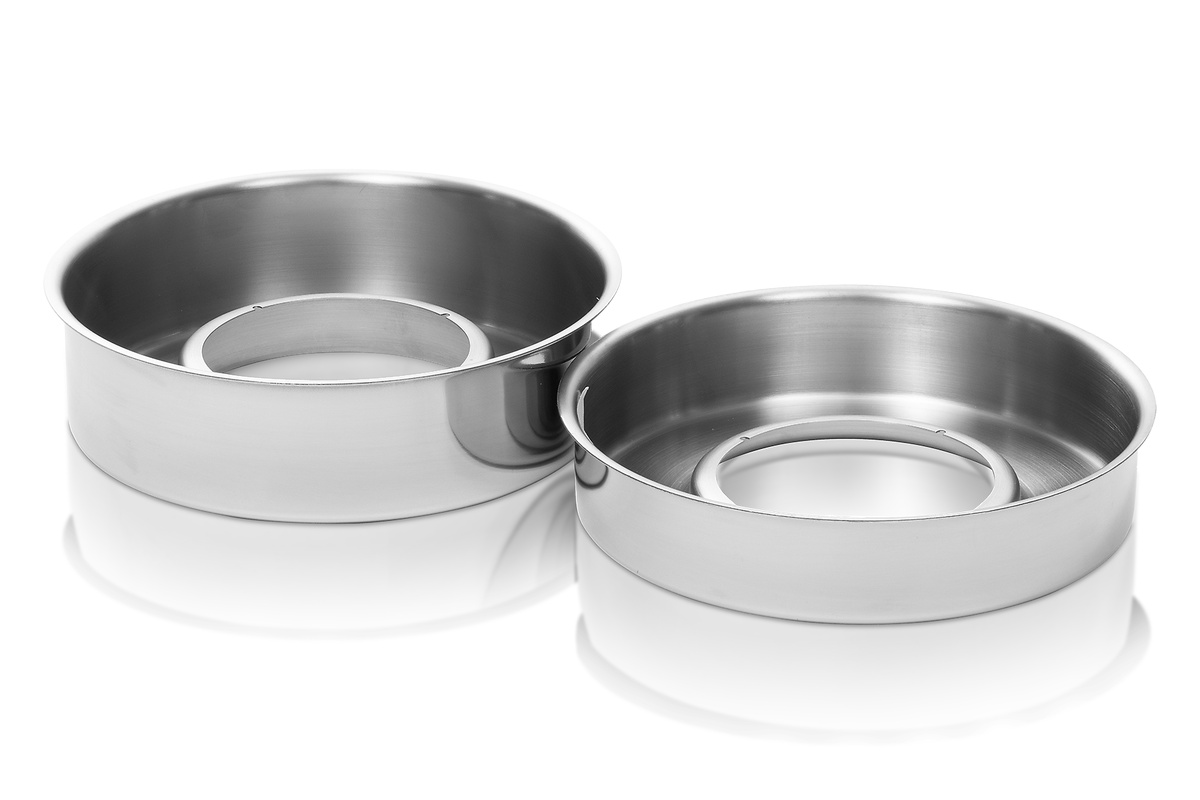

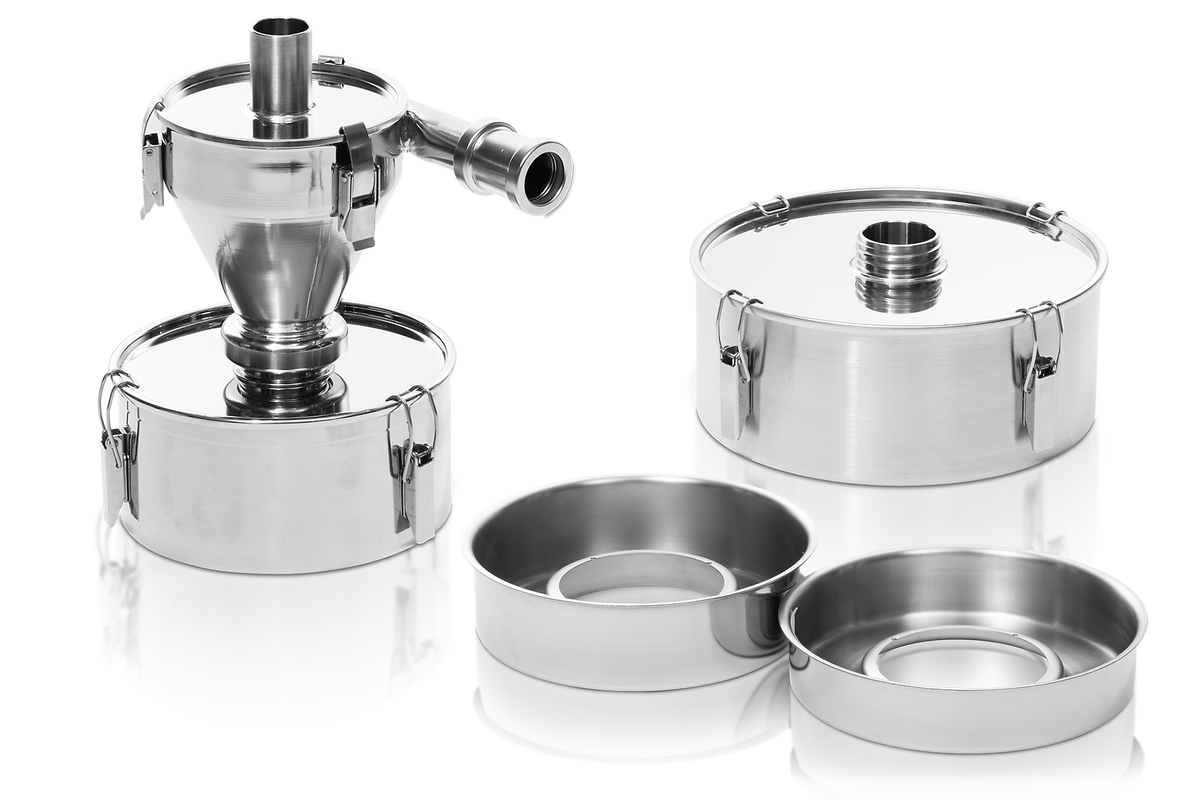

In the standard collecting vessel with 900 ml nominal volume, up to 300 ml of sample can be ground in one working step. With the large-volume cassette, the useful volume can be doubled to 600 ml. When utilizing a cassette with cyclone, various collecting vessels up to 4,500 ml useful volume are available.

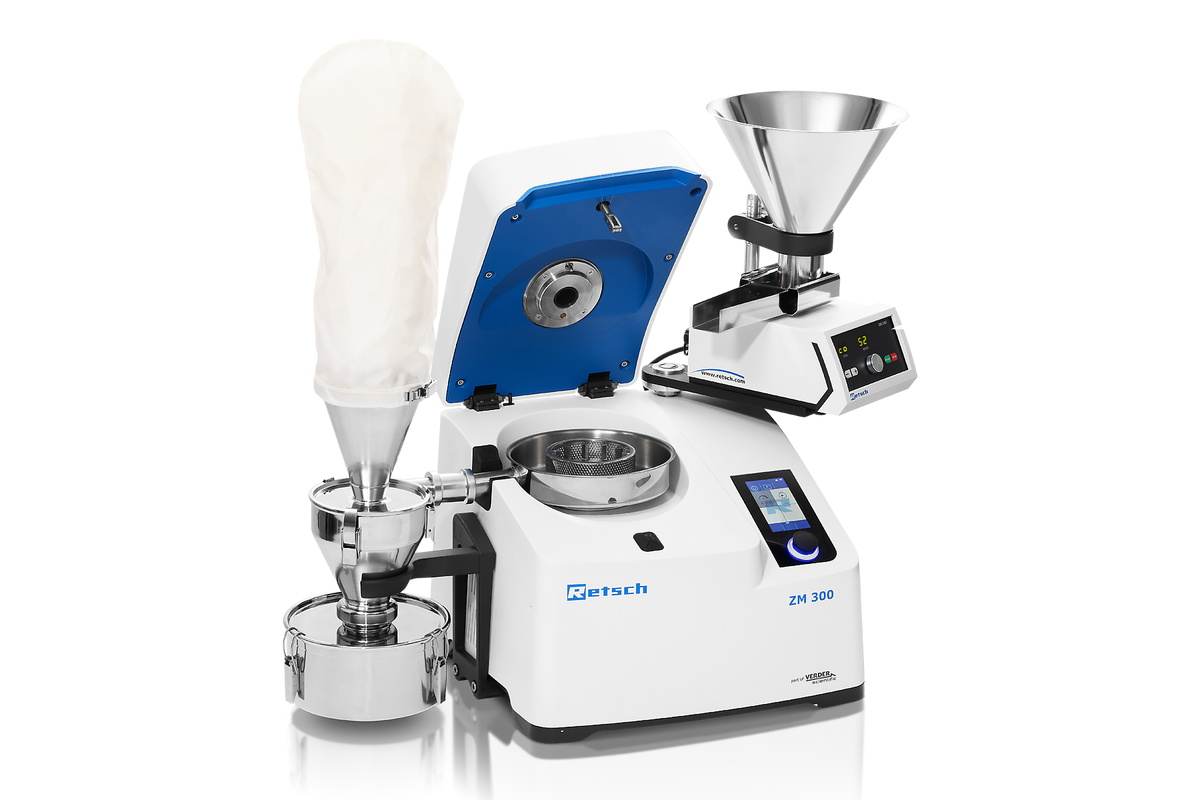

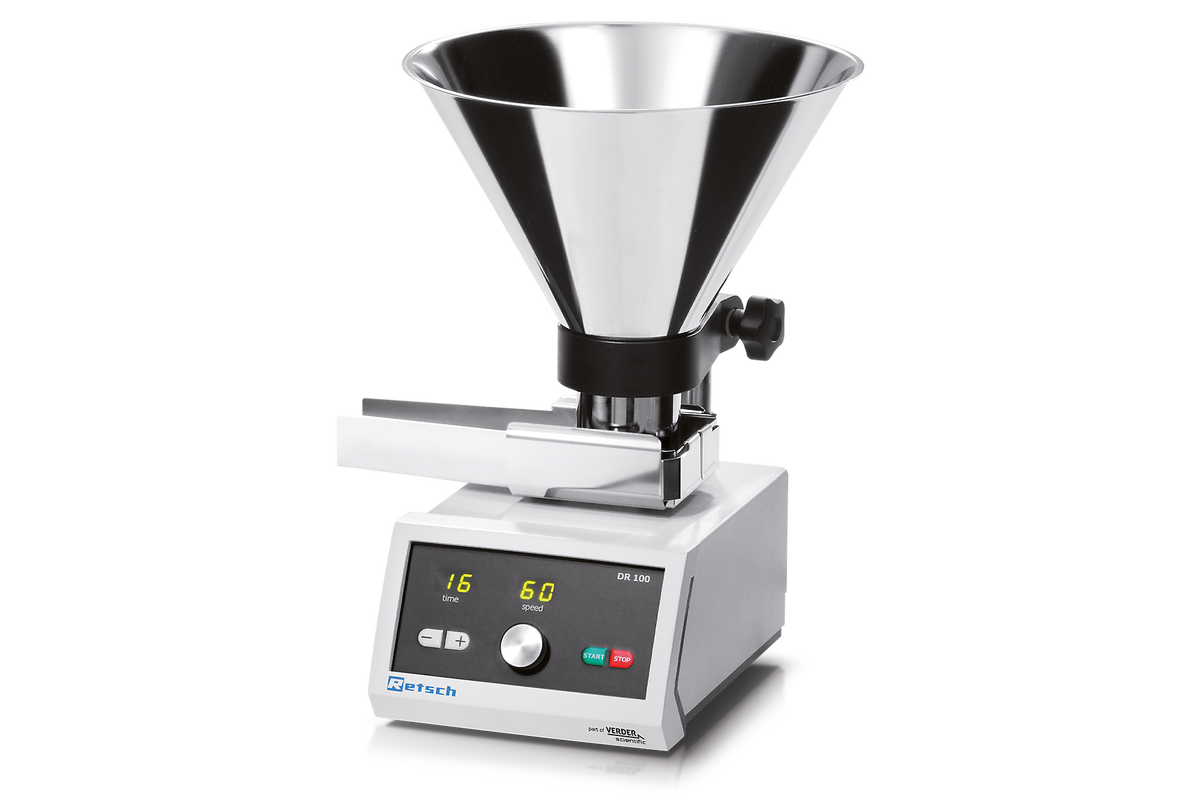

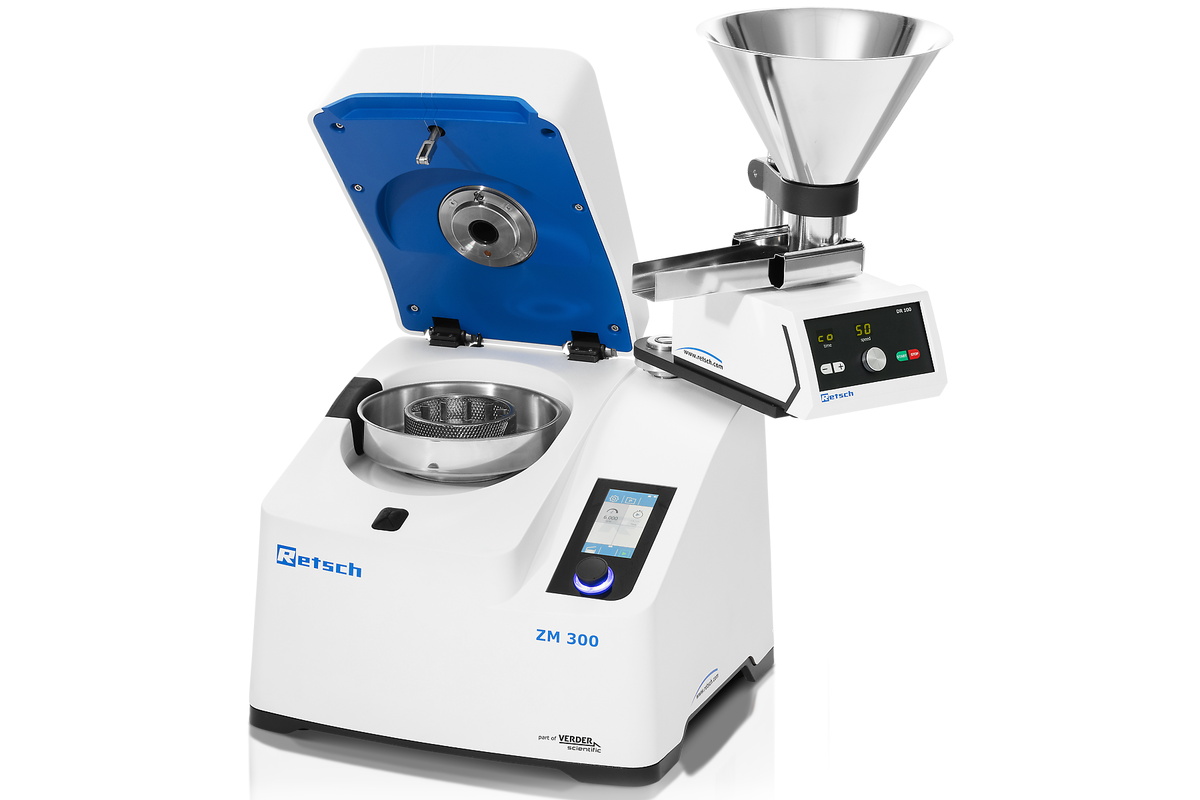

The Vibratory Feeder DR 100 is controlled via an interface and conveys material in a load-dependent manner to the hopper of the ZM 300. This procedure ensures uniform grinding with maximum sample feed. The use of a feeder is particularly advantageous for large sample quantities.
In the Ultra Centrifugal Mill ZM 300 size reduction takes place by impact and shearing effects between the rotor and the fixed ring sieve. The feed material passes through the hopper (with splash-back protection) onto the rotor. Centrifugal acceleration throws it outward with great energy and it is pre-crushed on impact with the wedge-shaped rotor teeth moving at a high speed. It is then finely ground between the rotor and the ring sieve.
This 2-step grinding ensures particularly gentle but fast processing. The feed material only remains in the grinding chamber for a very short time, which means that the characteristic features of the sample to be determined are not altered. The ground sample is collected in the collecting cassette surrounding the grinding chamber or in the downstream cyclone or paper filter bag.
The ZM 300 is suitable for grinding a wide variety of materials:
waste, graphite, collagen, drugs, fertilizers, feed pellets, grains, spices, rubber, wood, coffee beans, bones, coal, food, corn, minerals, paper, plant parts, polymers, powder coatings, rice, seeds, straw, sweets, tobacco, textiles, chemical products, electronic components, dried fruits and vegetables, dried larvae, pharmaceutical products.
Örnek hazırlama göreviniz için en iyi çözümü bulmak için uygulama veri tabanımızı ziyaret ediniz
Our instruments are recognized as the benchmark tools for a wide range of application fields in science and research. This is reflected by the extensive citations in scientific publications. Feel free to download and share the articles provided below.
The grinding process is carried out by impact and shearing forces between the rotor and the fixed ring sieve. The sample material is fed into the rotor via a funnel with splash protection, accelerated outwards by centrifugal force, and pre-ground by the wedge-shaped rotor teeth. The subsequent fine grinding takes place in the narrow gap between the rotor and the sieve.
Thanks to this two-stage process, sample preparation is particularly gentle and fast. Since the ground material only remains in the grinding chamber for a short time, the characteristic properties of the sample are retained. The end product is collected in the collection vessel, cyclone, or paper filter bag that surrounds the grinding chamber.
| Uygulamalar | ince öğütme |
| Uygulama alanı | biyoloji, kimya .., tarım |
| Besleme malzemesi | yumuşak, orta sert, kırılgan, lifli |
| Boyut küçültme prensibi | etki, kesme |
| Malzeme giriş büyüklüğü | < 10 mm |
| Çıkış büyüklüğü | < 40 µm |
| Parti boyutu / besleme miktarı | 300 ml with standard cassette 600 ml with volume cassette 4500 ml / 2500 ml / 450 ml / 230 ml with cyclone |
| Hız, 50 Hz (60 Hz) de | 6,000 - 23,000 min-1, free selectable |
| Rotor hızı | 31 - 119 m/s |
| Rotor çapı | 99 mm |
| Rotor tipi | 6-tooth rotor / 12-tooth rotor / 24-tooth rotor |
| Öğütücü elemanların malzemesi | Paslanmaz çelik, Titanyum, Aşınmaya dayanıklı kaplamalı paslanmaz çelik |
| Elek boyutu | trapez delikli 0,08 / 0,12 / 0,20 / 0,25 / 0,50 / 0,75 / 1,00 / 1,25 / 1,50 / 2,00 mm / / yuvarlak delikleli 3.00 / 4, 00 / 10.00mm |
| Öğütme süresi ayarı | Hayır |
| Kollektör kapasitesi | 900 ml with standard cassette 1200 ml with volume cassette 5000 ml / 3000 ml / 500 ml / 250 ml with cyclone |
| Tahrik | Frekans konvertörlü ile 3 fazlı asenkron motor |
| Güç bağlantısı | 1-faz |
| Koruma kodu | IP 30 |
| Güç tüketimi | 1750 VA ((200..240V), 1400 VA (110..120V) |
| G x Y x D kapalı | 452 x 431 x 426 mm |
| Net ağırlık | ~ 38 kg |
| Standartlar | CE |
